1ND and 2ND Generation Wheel Hub Bearing Assembly Line (Ball, Cone) /Car Bearing Auto Parts/Ball Bearing Making Machine

Frame High Strength Nitride Aluminum Alloy
Detection System MARPOSS,KEYENCE high-accuracy digital contact sensor,resolution:0.1um
Electrical Control System OMRON PLC 12 inch color industrial touch screen
Safety Shield Aluminum alloy frame,safety grating
Loading and unloading mechanism Automatic loading and unloading

Main Technical Parameter

Description


1ND and 2ND Generation Wheel Hub Bearing Assembly Line (Ball, Cone) /Car Bearing Auto Parts/Ball Bearing Making Machine


Frame

High Strength Nitride Aluminum Alloy

Detection System

MARPOSS,KEYENCE high-accuracy digital contact sensor,resolution:0.1um

Electrical Control System

OMRON PLC 12 inch color industrial touch screen

Safety Shield

Aluminum alloy frame,safety grating

Loading and unloading mechanism

Automatic loading and unloading

Process introduction

Inner:Feeding, cleaning, flaw detection, inner diameter detection, groove classification

Outer:Feeding, cleaning, flaw detection, inner diameter detection, groove classification

Fitting of inner and outer rings, clearance detection, finished product cleaning, drying, vibration measurement, grease injection and capping, laser marking, oiling, packaging

Processing Beat

≤155S(Cone)

Detailed Introduction

Working Product Size Range

     1.Height ≤50mm
      2.Outer Ring Outer Diameter ≤100mm
      3. Weight ≤5kg/set

Technical Specifications&Characteristics

     1.Takt Time≤18s
     2.Measurement Accuracy
        A.Measuring the clearance after 20 repeated cycles, repeating accuracy≤3µm
        B.Measuring Raceway sorting after 20 repeated cycles, repeating accuracy≤2µm
        C.Runout measurement after 20 repeated cycles error:±2.5 µ m

Equipment Components

    IR/OR Loading Machine, IR Bore Diameter / Groove Diameter Measuring& Sorting Machine,OR Measuring & Sorting Machine,                      IR &OR & Balls Assembly Machine, Axial Clearance Inspection Machine, Washing Machine, Drying Machine, Vibration Inspection                  Machine, Greasing & Shielding Machine (Including Torque Measurement), Finished Product Radial Stagger Inspection Machine, Laser              Marking Machine, Atomizing Oiler

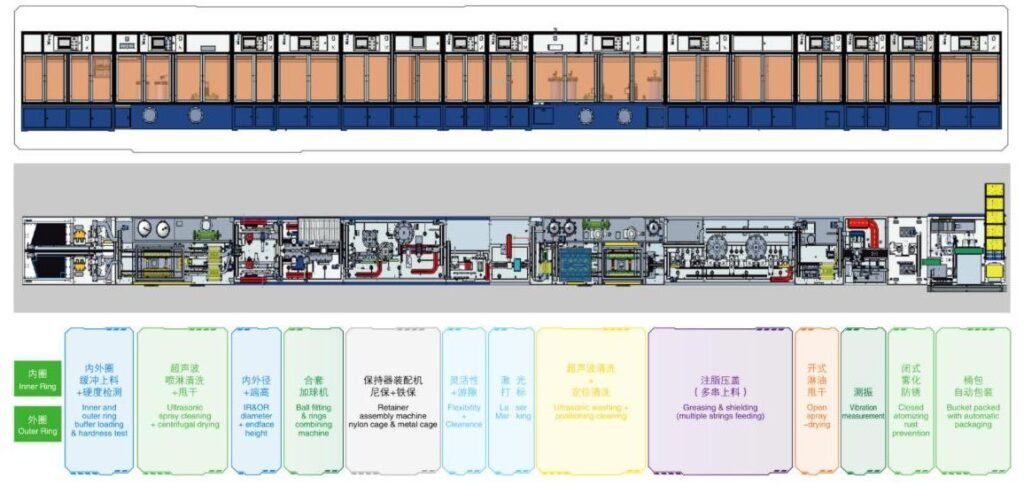

Assembly Line Process

Machine Details Display

Show Factory

Related Products

FAQ

Q: Are you a factory or trading company ?
A: We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.

Q: Could you please send me your best price?
A: Yes, we cherish every cooperative customer and work hard to facilitate transactions.And before quoting,please kindly consult us and provide:
What part do you need to fine grind? Your requirements for accuracy.
If there are product drawings, it will be more helpful for us to provide you with a suitable equipment solution.

Q: When is your delivery time ?
A: 90-110 days after 30%-50% deposit received.

Q: When is your payment term ?
A: Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.

Q: Can you make machines based on customer's design ?
A: Yes,we can customized. According to your special request,we can design solution and provide service scheme.

Q: How to handle the installation and test for machine?
A: Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.

After-sales Service

Technical Support

1.Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service

Spare Parts Service

1.A processing centre for Perishable parts, sent abroad in a second.

2.During the warranty period, we can provide replacement parts free of charge, except in the case of artificially damaged parts.

Maintenance

The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.

Packing and Shipping

Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.

About Our Company--Yingzoom

Shanghai Yingzoom Industrial Co., LTD is a national high-tech enterprise that develops and produces high-precision grinding machine equipment and hub unit bearing testing and assembly equipment. Has a number of invention and utility model patents, and has reached long-term cooperation with many multinational companies and listed companies.

The main product series are high-precision CNC grinding machines, wheel hub bearing assembly lines, fully automatic bearing grinding machines, bearing processing equipment, etc.

The company regards customers as the core of the enquality as the life of the enterprise, and innovation as the enterprise goal, and serves global customers with complete equipment, strong technical force, and advanced testing and assembly technology. With continuous development and technological innovation, the equipment has reached the advanced level in the same industry at home and abroad.
