Main Technical Parameter
| Description | 3ND Generation Hub Bearing Unit Assembly Line |
| Frame | High Strength Nitride Aluminum Alloy |
| Detection System | MARPOSS,KEYENCE high-accuracy digital contact sensor,resolution:0.1um |
| Electrical Control System | OMRON PLC 12 inch color industrial touch screen |
| Safety Shield | Aluminum alloy frame,safety grating |
| Loading and unloading mechanism | Automatic loading and unloading |
| Processing Beat | ≤22S |
Detailed Introduction
Working Product Size Range
1.Nominal OR Outer Diameter :Φ80~Φ180mm
2.OR Width :50~100mm
3. Nominal IR Bore diameter: Φ20~Φ60mm
4.IR Width:15~50mm
5.Inner Flange Width:50~150mm
6.Inner Flange Outer Diameter :Φ100~Φ180mm
Technical Specifications&Characteristics
1.Takt Time ≤ 22s
2.Measurement Accuracy
A.Measuring the clearance after 20 repeated cycles, repeating accuracy≤3µm
B.Measuring Raceway sorting after 20 repeated cycles, repeating accuracy≤2µm
C.Runout measurement after 20 repeated cycles error:±2.5 µ m
Equipment Components
Ball Assembling Machine, Bolt Press, Component Sorting Machine, Sleeve Assembly Machine, Nut Tightening Machine, Vibration Inspection Machine, Clearance (Positive) Inspection Machine, Damage Test Machine of Rotation Riveting, Clearance (negative) Inspection Machine, Terminal Stagger Inspection Machine, Greasing & Shielding Machine (Including Torque Measurement), Nut Riveting Machine, Ring Gear Pressing Machine, Spline Detection, ABS Glue Test Machine, Torque Marking Machine, Oiler, Packing Machine.

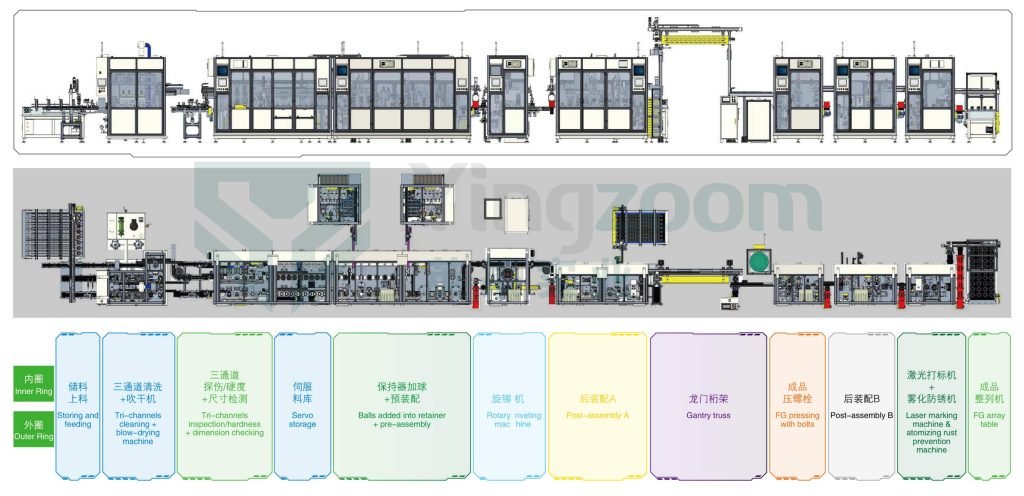

Assembly Line Process

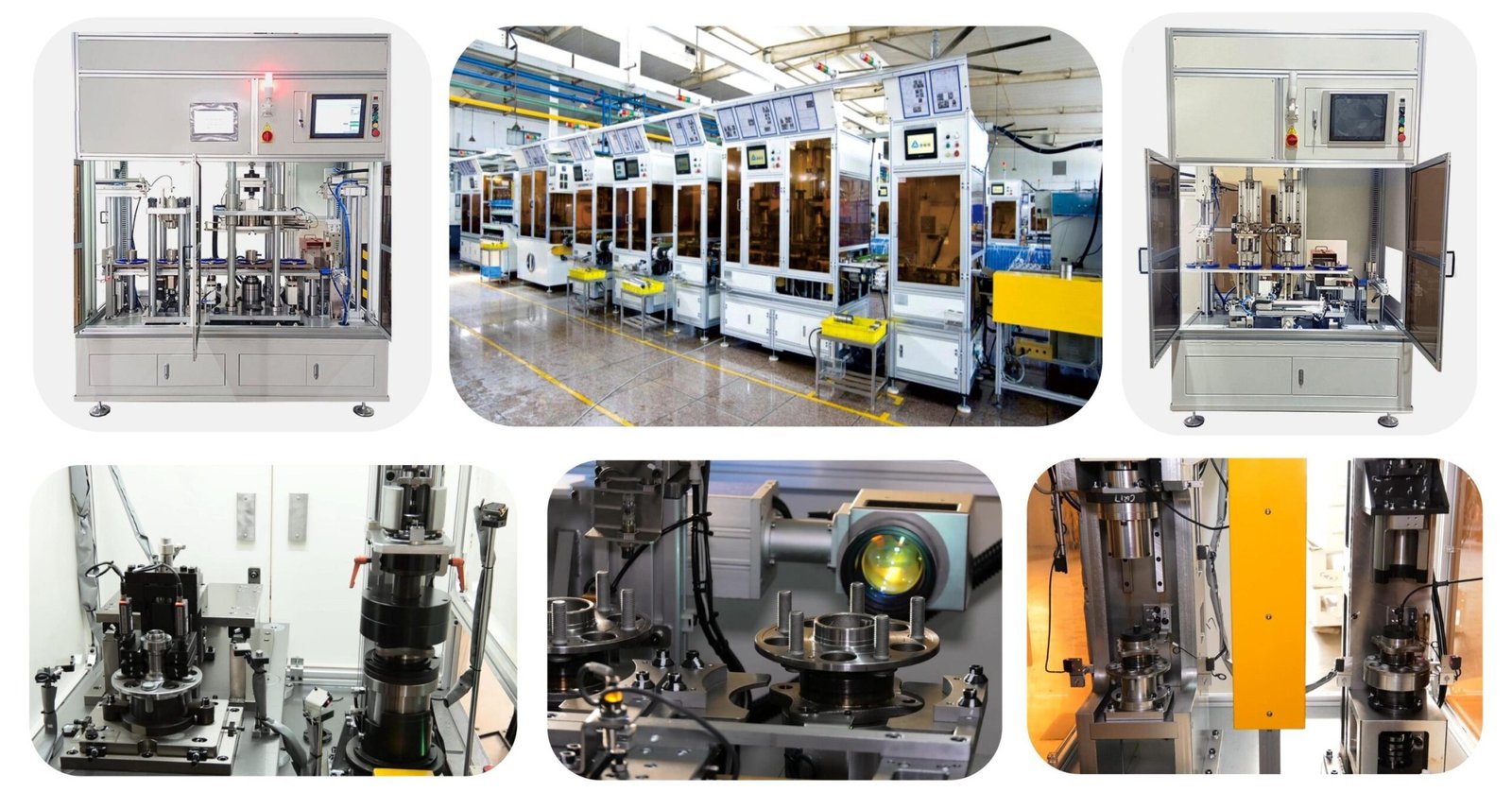

Factory Site Pictures
Show Factory
