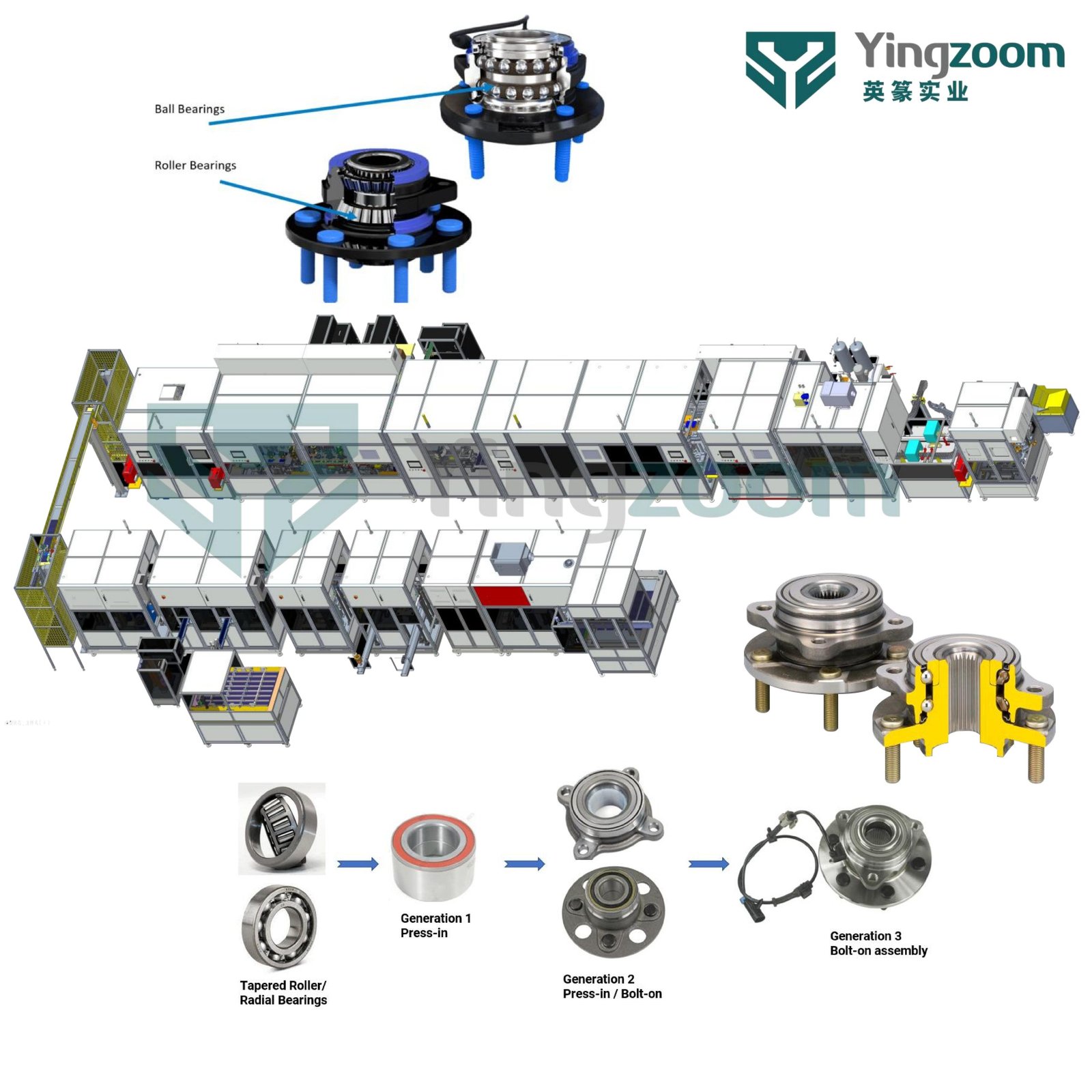

Main Technical Parameter
|
Description | 3ND Generation Wheel Hub Unit Assembly Line (Ball, Cone) /End Spline Rotary Rolling Machine/Ball Bearing Making Machine |
|
Frame |
High Strength Nitride Aluminum Alloy |
|
Detection System |
MARPOSS,KEYENCE high-accuracy digital contact sensor,resolution：0.1um |
|
Electrical Control System |
OMRON PLC 12 inch color industrial touch screen |
|
Safety Shield |
Aluminum alloy frame,safety grating |
|
Loading and unloading mechanism |
Automatic loading and unloading |
|
Process introduction |
Outer ring feeding, cleaning, flaw detection, thread detection, groove detection, grease injection Inner flange feeding, cleaning, flaw detection, thread pressing, thread detection, groove detection Steel ball cage installation, outer sealing ring press-in, outer ring press-in, clearance detection, spin riveting, spin riveting flaw detection, vibration measurement, torque, end cover press-in, ABS cover press-in, diameter, end jump detection, ABS inspection, laser marking, oiling, packaging |
|
Processing Beat |
≤23S（Ball，Cone） |
Detailed Introduction
Working Product Size Range
1.Nominal OR Outer Diameter :Φ80~Φ180mm
2.OR Width :50~100mm
3. Nominal IR Bore diameter: Φ20~Φ60mm
4.IR Width:15~50mm
5.Inner Flange Width:50~150mm
6.Inner Flange Outer Diameter :Φ100~Φ180mm
Technical Specifications&Characteristics
1.Takt Time ≤ 22s
2.Measurement Accuracy
A.Measuring the clearance after 20 repeated cycles, repeating accuracy≤3µm
B.Measuring Raceway sorting after 20 repeated cycles, repeating accuracy≤2µm
C.Runout measurement after 20 repeated cycles error:±2.5 µ m
Equipment Components
Ball Assembling Machine, Bolt Press, Component Sorting Machine, Sleeve Assembly Machine, Nut Tightening Machine, Vibration Inspection Machine, Clearance (Positive) Inspection Machine, Damage Test Machine of Rotation Riveting, Clearance (negative) Inspection Machine, Terminal Stagger Inspection Machine, Greasing & Shielding Machine (Including Torque Measurement), Nut Riveting Machine, Ring Gear Pressing Machine, Spline Detection, ABS Glue Test Machine, Torque Marking Machine, Oiler, Packing Machine

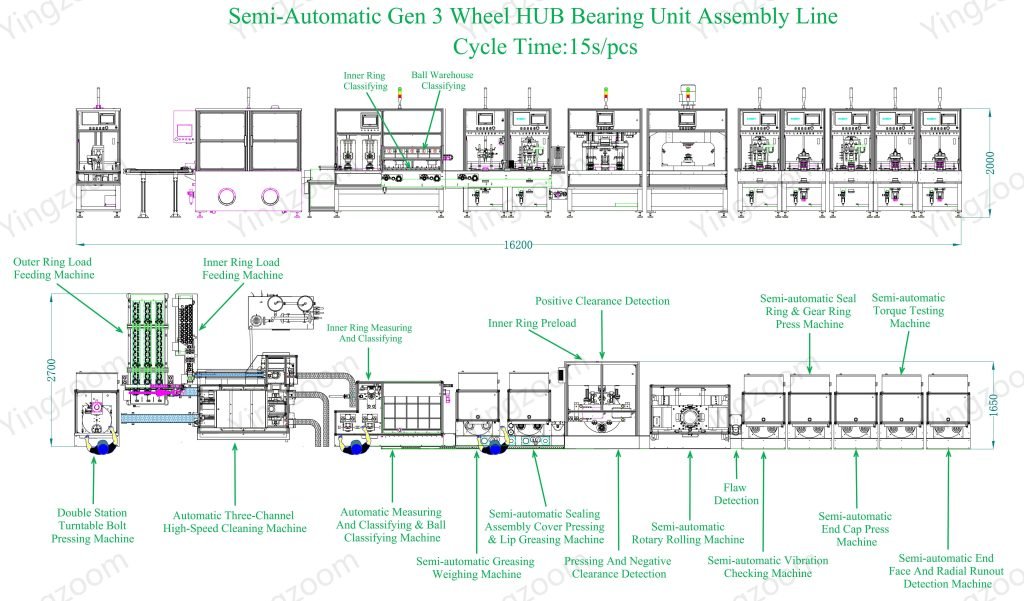

Assembly Line Process

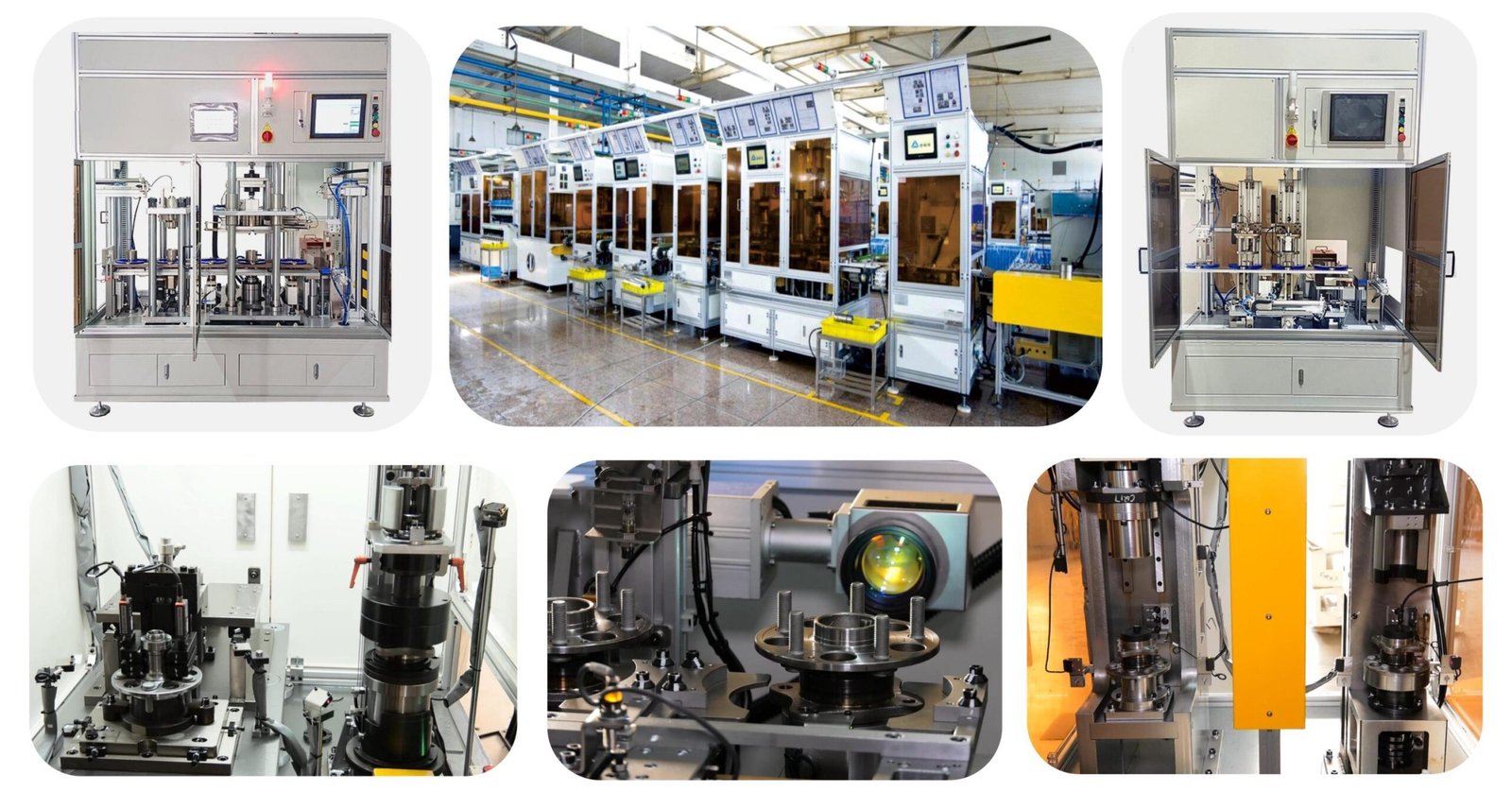

Machine Pictures
Show Factory
Related Products
FAQ
Q: Are you a factory or trading company ?
A: We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q: Could you please send me your best price?
A: Yes, we cherish every cooperative customer and work hard to facilitate transactions.And before quoting,please kindly consult us and provide:
What part do you need to fine grind? Your requirements for accuracy.
If there are product drawings, it will be more helpful for us to provide you with a suitable equipment solution.
Q: When is your delivery time ?
A: 90-110 days after 30%-50% deposit received.
Q: When is your payment term ?
A: Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q: Can you make machines based on customer's design ?
A: Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q: How to handle the installation and test for machine?
A: Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
After-sales Service
Technical Support
1.Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service
Spare Parts Service
1.A processing centre for Perishable parts, sent abroad in a second.
2.During the warranty period, we can provide replacement parts free of charge, except in the case of artificially damaged parts.
Maintenance
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
Packing and Shipping
Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.
