Main Technical Parameter

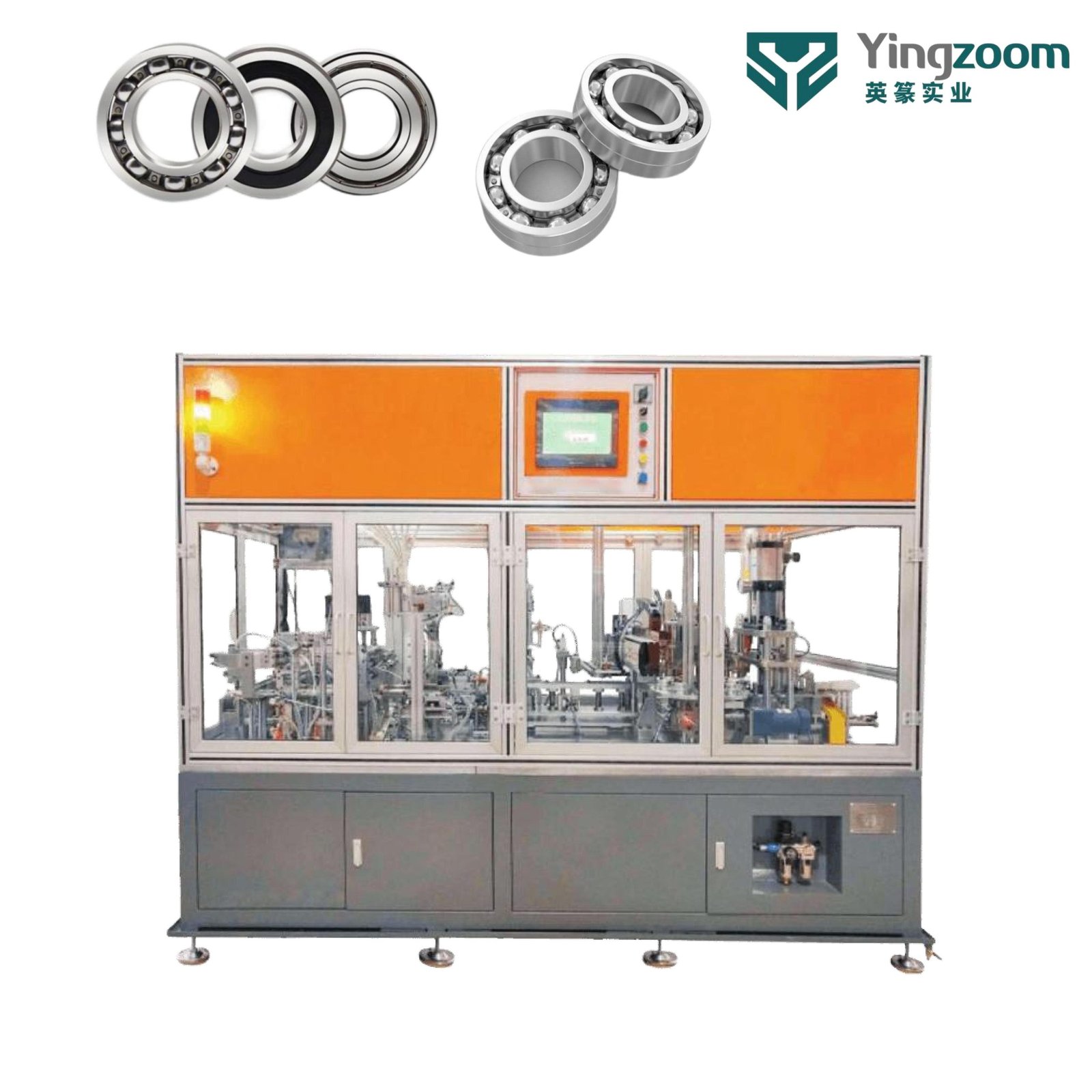

| Description | Automatic Bearing Ring Matching And Cage Assembly Machine | |||||
| Scope of application | Bearing outer diameter 7-22mm | Bearing outer diameter 22-62mm | ||||
| Processing Beat | ≤4S | ≤3.5S | ||||
| Process Flow | Inner ring conveying and loading → Inner ring conveying → Inner ring channel measurement → Inner ring empty → Inner ring material warehouse → Outer ring conveying and loading → Outer ring conveying and loading → Outer ring conveying → Outer ring channel measurement → Outer ring empty → Outer ring material warehouse → Inner ring selection → Outer ring selection → Inner and Outer ring pairing and closing → Empty station → Ball loading mechanism selection and ball loading → Bearing assembly → Chain plate transportation → Fiber optic/image finding empty position → Closing → Ball splitting → Mechanical/image ball inspection → Placing retainer → Mechanical arm loading Detection → Unqualified Kick Off → Lower Retainer → Shake in → Nail Inspection → Riveting and Pressing → Mechanical/maging → Final Inspection → Unqualified Product Removal → Finished Product Discharging | |||||
| Working voltage | 220V/50Hz/1.5A | |||||
| Working air pressure | 0.4MPa | |||||
| Overal dimensions | L1770×W640xH1800mm | L2490×W1080×H1800mm | ||||
Accuracy indicators:
The proportion of steel ball injuries caused by machines: ≤ 1% (relative to labor ratio)
Measurement of injury ratio: ≤ 1%
Scattering ratio: ≤05%
Clearance deviation: ≤5μm,(this indicator refers to the roundness of the innerand outer raceways within slm)
Paired pairs of inner and outer rings and steel balls :16 material warehouses and 10 sets of steel balls foreach innerand outer ring
Featured features
Automatic calibration: The standard parts are automaticaly read in,and when there is a deviation in calibration,an alarm is automaticaly triggered to stop working. The benchmarking time can be set by the operating staff themselves
Single ball bottle ball retrieval:10 sets of steel ball bottles,each with a separate cyinder for ball retrieval.The new structure can greatly reduce the damage to the steel ball during ball retrieval
Scan code and add ball Use a scanning gun to scan the QR code or barcode on the steel ball box,and the corresponding steel ball cylinderon the device will automatically open to avoid traditional manual adding of wrong steel balls.
Multi material storage mechanism:The new structure adopts a multi string feeding design with bent claws/rivet retainers,reducing labor and feeding times,improving the overall operating efficiency of the equipment,improving production efficiency while reducing labor costs
Customized solution for allin-one machine The sleeve can be integrated with nylon,crown,bent claw,rivet and other retainers for assembly and clearance detection
Double 16 workstation material warehouse structure,greatly improving the nesting rate
The layout of equipment workstations is more reasonable,and the overall floor area is smaller
Customized operation direction for the entire machine,with a variety of universal whole line solutions
The overall appearance design of the covermachine
Show Factory
Related Products
FAQ
Q: Are you a factory or trading company ?
A: We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q: Could you please send me your best price?
A: Yes, we cherish every cooperative customer and work hard to facilitate transactions.And before quoting,please kindly consult us and provide:
What part do you need to fine grind? Your requirements for accuracy.
If there are product drawings, it will be more helpful for us to provide you with a suitable equipment solution.
Q: When is your delivery time ?
A: 90-110 days after 30%-50% deposit received.
Q: When is your payment term ?
A: Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q: Can you make machines based on customer's design ?
A: Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q: How to handle the installation and test for machine?
A: Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
After-sales Service
Technical Support
1.Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service
Spare Parts Service
1.A processing centre for Perishable parts, sent abroad in a second.
2.During the warranty period, we can provide replacement parts free of charge, except in the case of artificially damaged parts.
Maintenance
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
Packing and Shipping
Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.
About Our Company--Yingzoom
Shanghai Yingzoom Industrial Co., LTD is a national high-tech enterprise that develops and produces high-precision grinding machine equipment and hub unit bearing testing and assembly equipment. Has a number of invention and utility model patents, and has reached long-term cooperation with many multinational companies and listed companies.
The main product series are high-precision CNC grinding machines, wheel hub bearing assembly lines, fully automatic bearing grinding machines, bearing processing equipment, etc.
The company regards customers as the core of the enquality as the life of the enterprise, and innovation as the enterprise goal, and serves global customers with complete equipment, strong technical force, and advanced testing and assembly technology. With continuous development and technological innovation, the equipment has reached the advanced level in the same industry at home and abroad.
