Main Technical Parameter
| Description | Automatic Short Cylindrical Roller Bearing Assembly Line |
| OD | Outer Diameter:Φ30-Φ120mm |
| Accuracy | IR&OR raceway groove measurement Error:1μm IR&OR plane height error: 1μm IR Bore&outer diameter measurement error:1μm Raceway width measurement error:1μm Finished clearance measurement error:3μm |
| Process introduction | IR/OR Loading Machine, Demagnetizing & Washing & Drying Machine, IR/OR Measuring Sorting Machine, Roller Assembly Machine, Roller Circumferential Total Gap Inspection Machine, Axial/Radial Direction Clearance Inspection Machine, Finished Axial/Radial &Terminal Stagger Detector, Flexibility Check Machine, Vibration Inspection Machine, Starting Torque Detector, Friction Torque Detector, Laser Marking Machine (Including Flat Washer & Leak Detection),Conservation Oil Spraying & Drying Machine, Packing Machine |
| Processing Beat | ≤18S |
Detailed Introduction
Working Product Size Range
1. Outer Diameter:Φ30-Φ120mm
Technical Specifications&Characteristics
1. Takt Time: 18s/set
2. Measurement Accuracy
A. IR&OR raceway groove measurement Error:1μm
B. IR&OR plane height error: 1μm
C. IR Bore&outer diameter measurement error:1μm
D.Raceway width measurement error:1μm
F. Finished clearance measurement error:3μm
Equipment Components
IR/OR Loading Machine, Demagnetizing & Washing & Drying Machine, IR/OR Measuring Sorting Machine, Roller Assembly Machine, Roller Circumferential Total Gap Inspection Machine, Axial/Radial Direction Clearance Inspection Machine, Finished Axial/Radial &Terminal Stagger Detector, Flexibility Check Machine, Vibration Inspection Machine, Starting Torque Detector, Friction Torque Detector, Laser Marking Machine (Including Flat Washer & Leak Detection),Conservation Oil Spraying & Drying Machine, Packing Machine

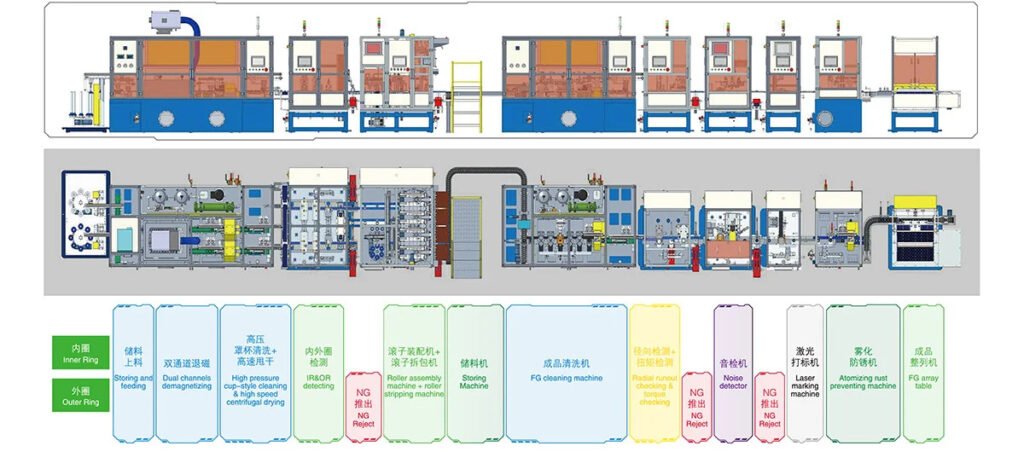

Assembly Line Process
Factory Site Pictures
Show Factory
Related Products
FAQ
Q: Are you a factory or trading company ?
A: We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q: Could you please send me your best price?
A: Yes, we cherish every cooperative customer and work hard to facilitate transactions.And before quoting,please kindly consult us and provide:
What part do you need to fine grind? Your requirements for accuracy.
If there are product drawings, it will be more helpful for us to provide you with a suitable equipment solution.
Q: When is your delivery time ?
A: 90-110 days after 30%-50% deposit received.
Q: When is your payment term ?
A: Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q: Can you make machines based on customer's design ?
A: Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q: How to handle the installation and test for machine?
A: Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
After-sales Service
Technical Support
1.Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service
Spare Parts Service
1.A processing centre for Perishable parts, sent abroad in a second.
2.During the warranty period, we can provide replacement parts free of charge, except in the case of artificially damaged parts.
Maintenance
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
Packing and Shipping
Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.
