Main Technical Parameter

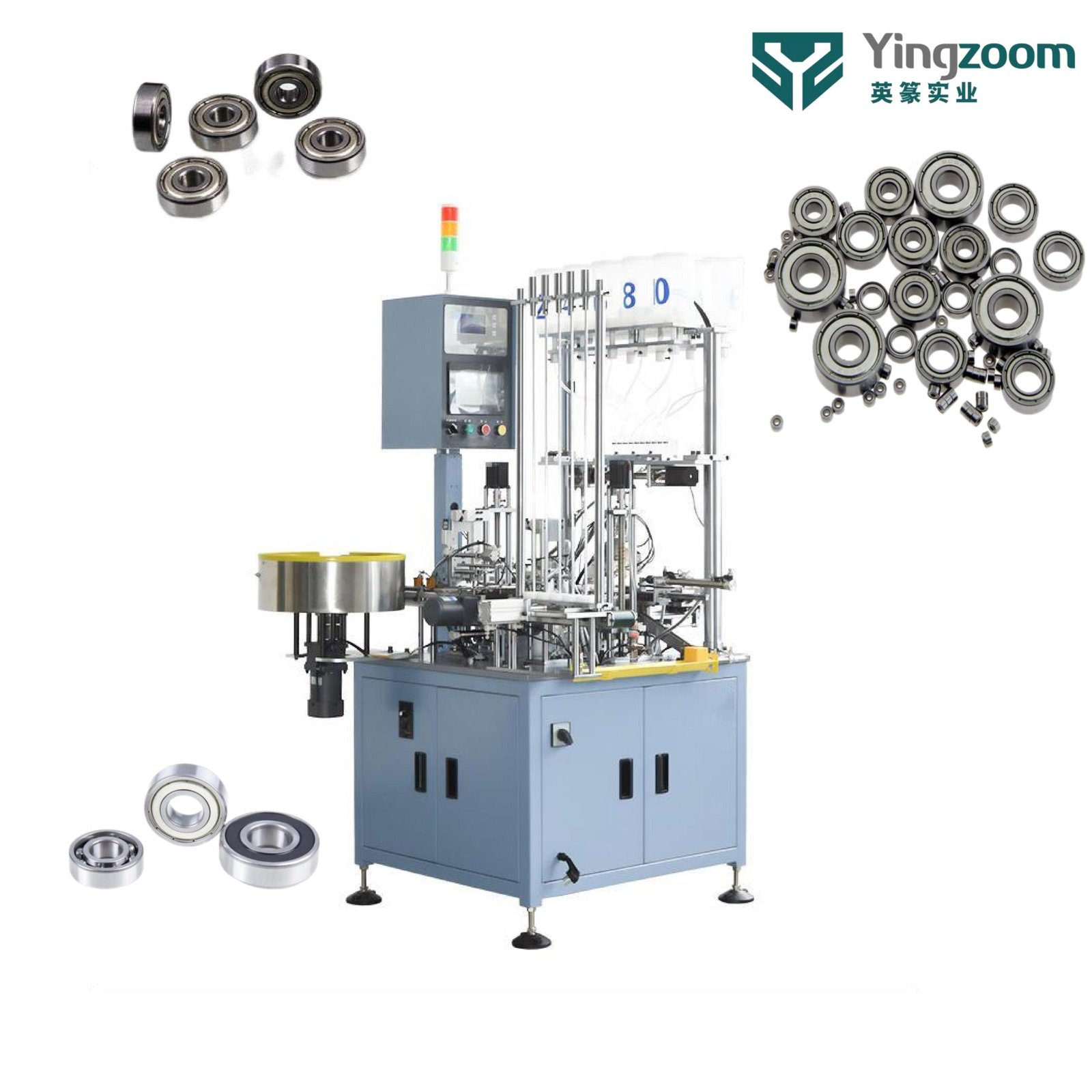

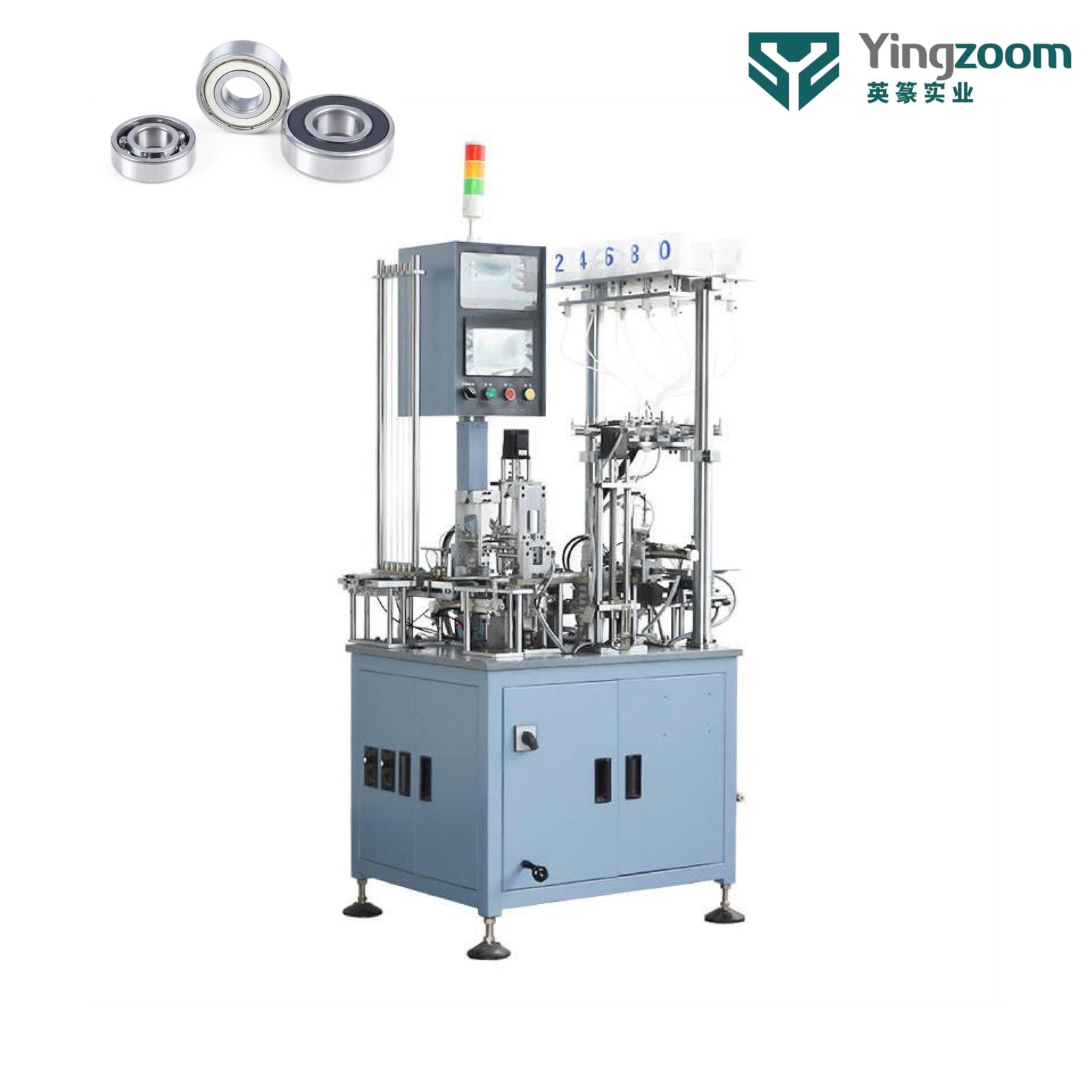

| Description | Automatic Small Bearing Ring Matching and Ball Assembly Machine | |||||
| Scope of application | Bearing outer diameter 20-62mm | Bearing outer diameter 60-100mm | Bearing outer diameter 100-160mm | |||
| Processing Beat | ≤3S | ≤5S | ≤8S | |||
| Process Flow | Inner circle conveying and loading → Inner circle conveying → Inner circle channel measurement → Inner circle vacancy → Inner circle material warehouse → Outer circle conveying and loading → Outer circle conveying → Outer circle channel measurement → Oute circle empty space → Outer circle material warehouse → Inner ring selection/outer ring selection → Inner and outer ring matching and closing → Empty station → Ball loading mechanism selection and installation → Bearing assembly → Completion of material discharge by assembly | |||||
| Working voltage | 220V/50Hz/1.5A | |||||
| Working air pressure | 0.4MPa | |||||
| Overal dimensions | L850×W760×H1800mm | L1100×W900×H1800mm | L1800×W2000×H1800mm | |||
Accuracy indicators:
10 repeated measurements at a single point in the channel ≤ 1μm
The proportion of steel ball injuries caused by machines ≤ 1% (relative to labor ratio)
Measure the proportion of injuries; ≤1%
Scattering ratio: ≤ 0.5%
Clearance deviation: ≤ 5μm. This indicator refers to the roundness of the raceway of the innerand outerrings being ≤ 1μm)
Featured features
Automatic benchmarking,automatic reading of standard parts,automatic alarm when benchmarking deviation occurs,and stop working.
The benchmarking cycle can be set by the user.
Paired pairs of inner and outer rings and steel balls:14 material warehouses and 10 sets of steel balls for each inner and outer ring
Customizable solution: Single ball bottle for ball retrieval,single ball bottle cap control,steel ball scanning and ball adding,and a series of error prevention functions for the overall appearance design of the hood.
Customized operation direction for the entire machine, suitable for various whole line schemes.
Show Factory
