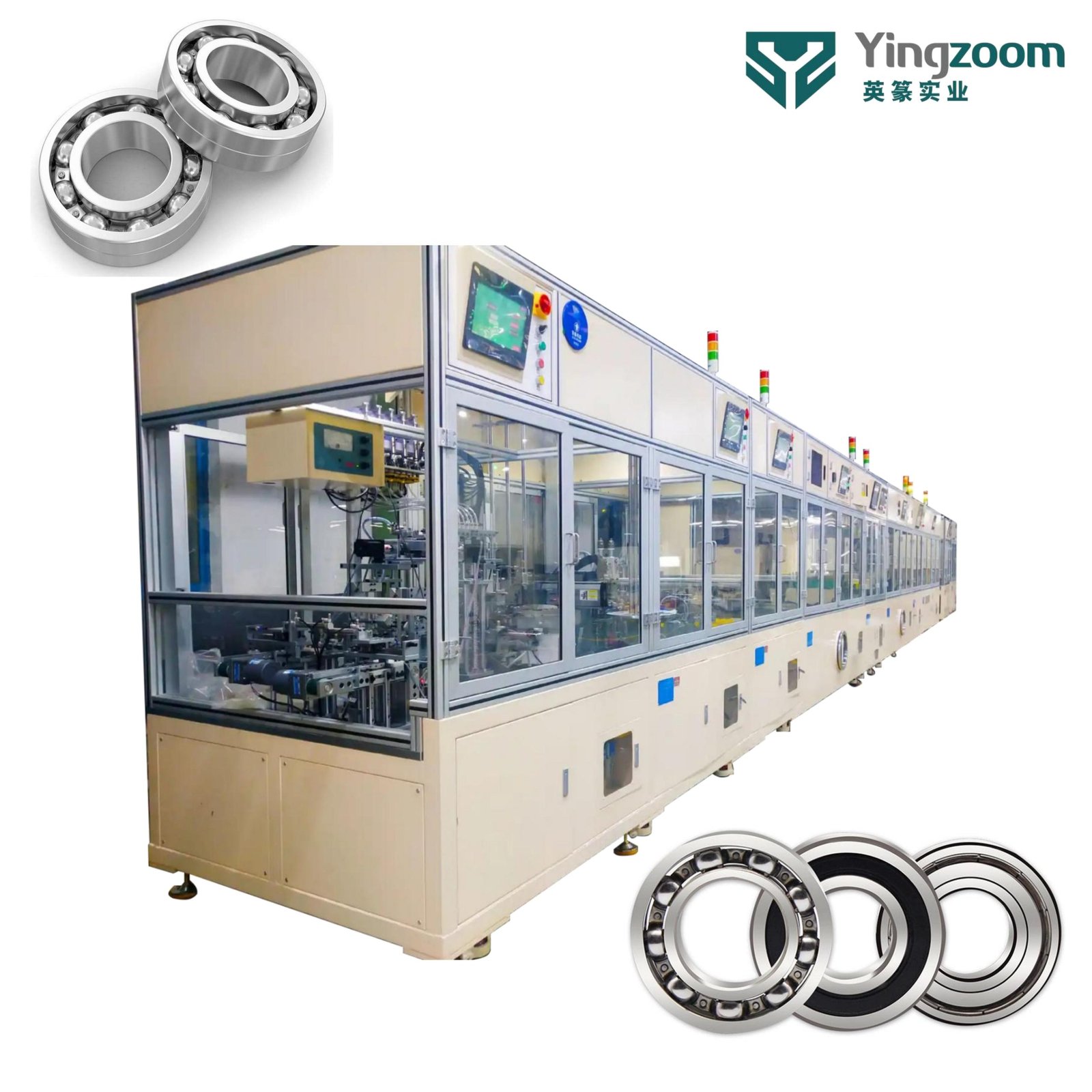

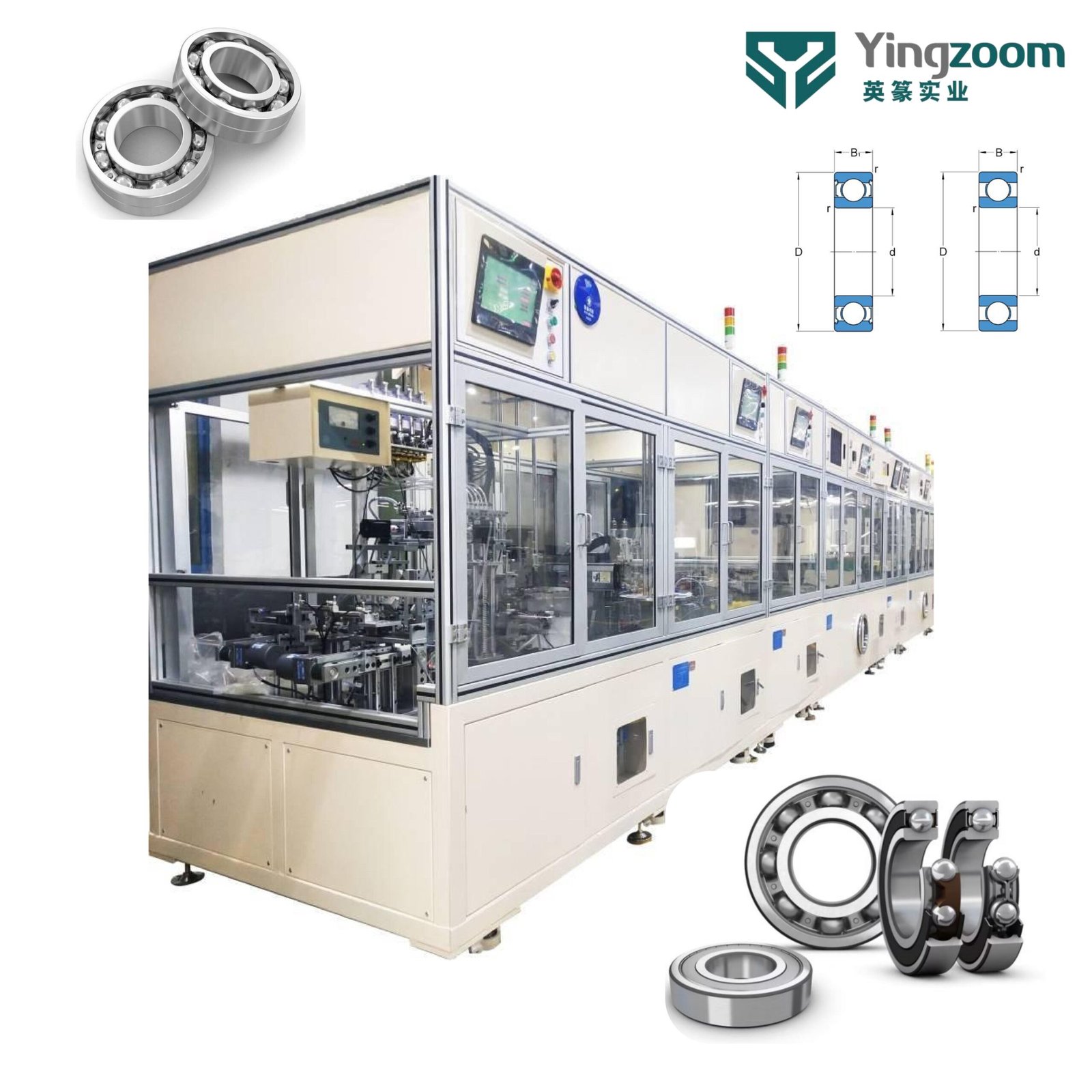

Main Technical Parameter
| Description | Automatic Deep Groove Ball Bearing Assembly Line |
| OD(mm) | Φ18mm~Φ40mm, Φ22mm~Φ62mm, Φ58mm~Φ90mm,Φ62mm~Φ110mm,Φ78mm~Φ130mm,Φ110mm~Φ200mm |
| Accuracy | Bore & outer diameter repeated measuring accuracy ≤ lum Raceway groove repeated measuring accuracy:lum Set the clearance value is more than 99% pass rate |
| Process introduction | Inner/outer ring feeding machine,Ultrasonic cleaning machine,Inner and outer diameter detection machines,Computer matching&ball loading machine,Spray cleaning machine,Cage riveting machine (including clearance detection),Finished product spray cleaning machine,Centrifugal drying machine,Flexibility detection weighing Creasing and capping machine,Oiling machineArrangement machine |
| Processing Beat | ≤ 3~10S |
Detailed Introduction
Working Product Size Range
1.Miniature-type Outer Diameter:18~40mm
2. Small-type Outer Diameter: 22~62 mm
3. Medium-type Outer Diameter: 58~90mm
4.Large-type Outer Diameter: 62~110mm
5.Extra Large Outer Diameter: 78~130mm 110~200mm
Technical Specifications&Characteristics
1. Takt Time
Miniature-type Takt Time: ≤3.5~4s
Small-type Takt Time: ≤4~4.5s
Medium-type Takt Time:≤4.5~7s
Large-type Takt Time：≤5~9s
Extra Large Takt Time：≤5~9s
2. Measurement Accuracy
A. Bore&outer diameter repeated measuring accuracy ≤1μm
B. Raceway groove repeated measuring accuracy±1μm
C. Set the clearance value is more than 99% pass rate
3.Equipment Components
IR/OR Loading Machine, IR/OR Ultrasonic Washing Machine, IR/OR Inspection Machine, Auto Combining Machine, Single Channel Spray Washing Machine, Cage Assembly Machine (Including Clearance Inspection),Finished Product Spray Washing Machine, Centrifugal Dryer, Greasing & Shielding & Flexibility Check Machine, Oil Application & Packing Machine

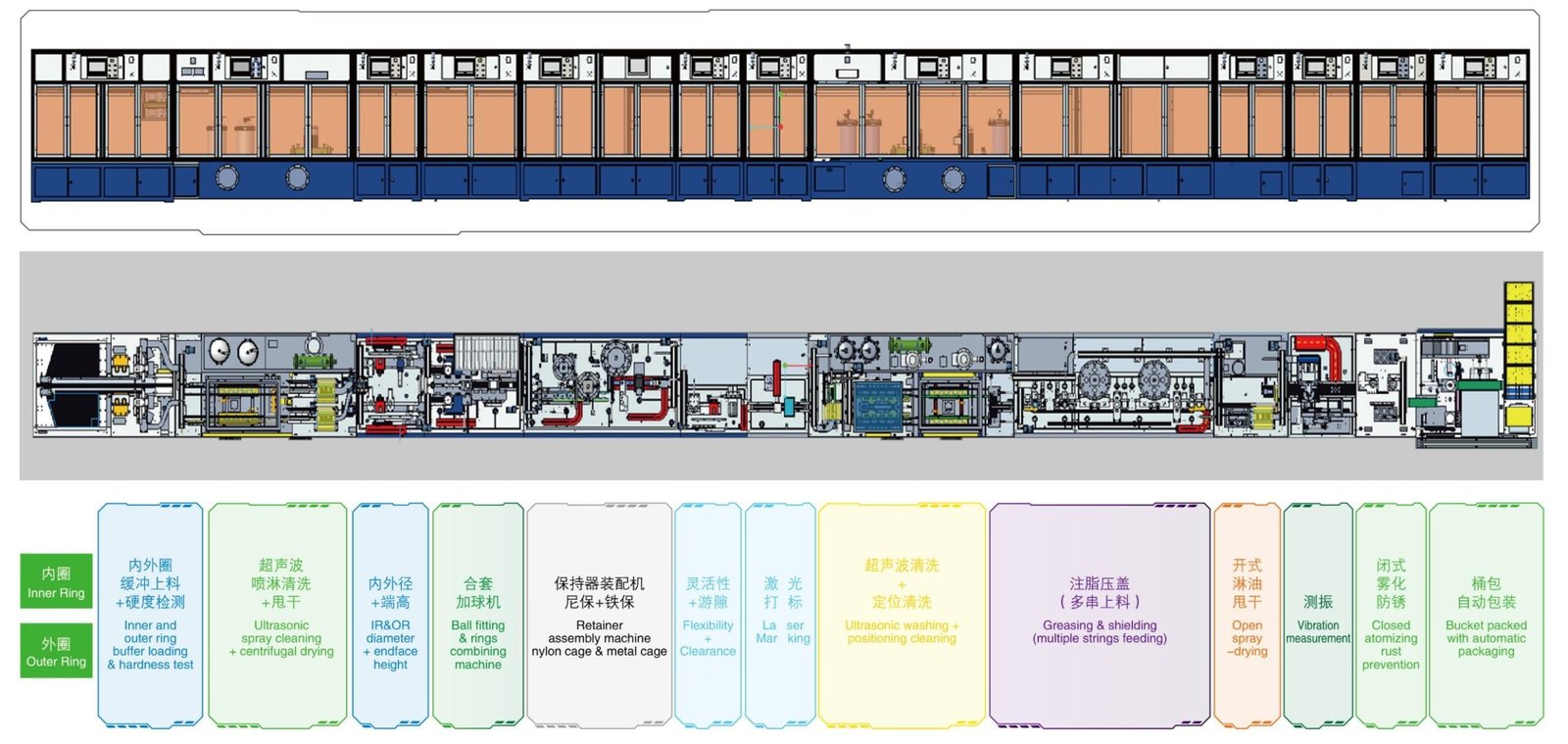

Assembly Line Process

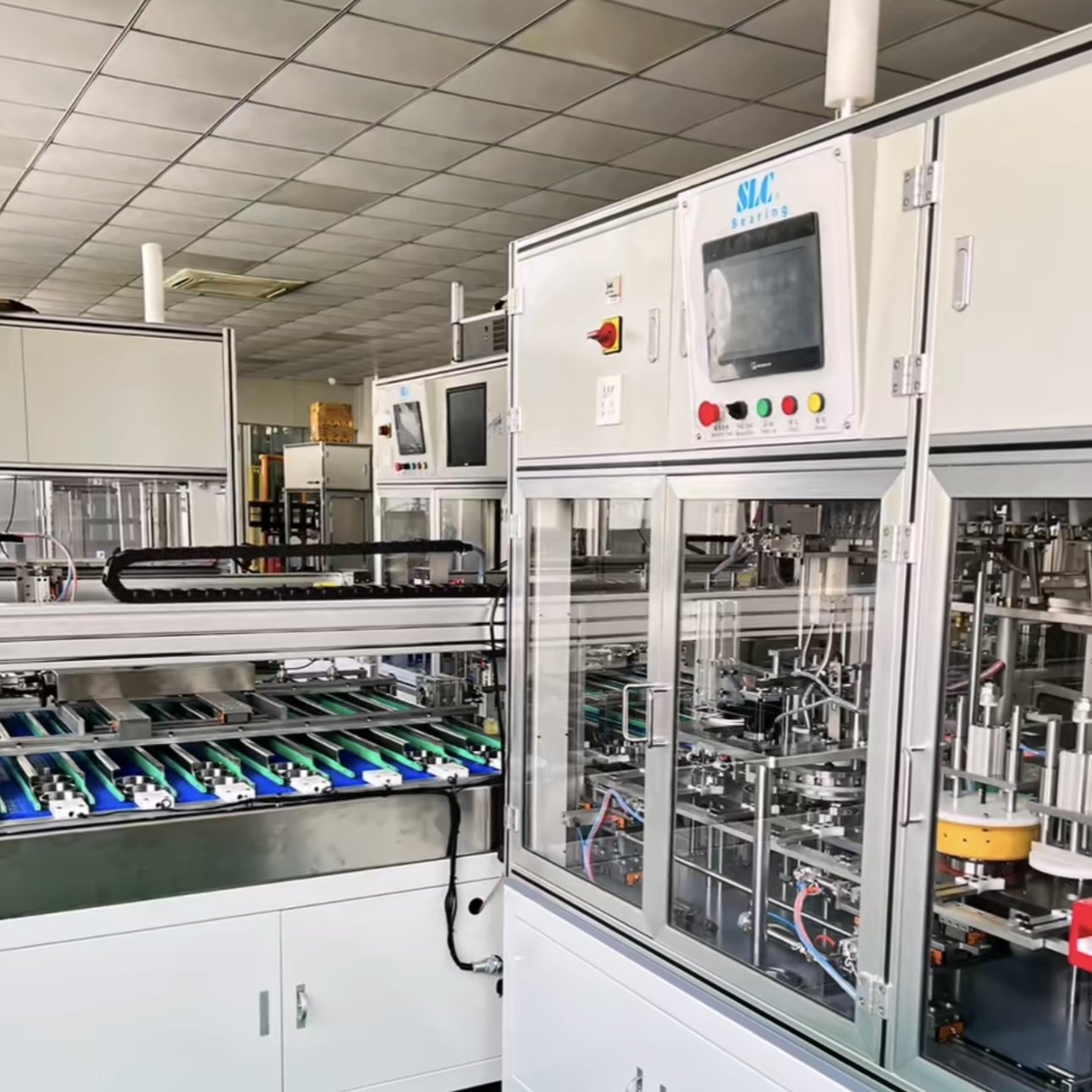

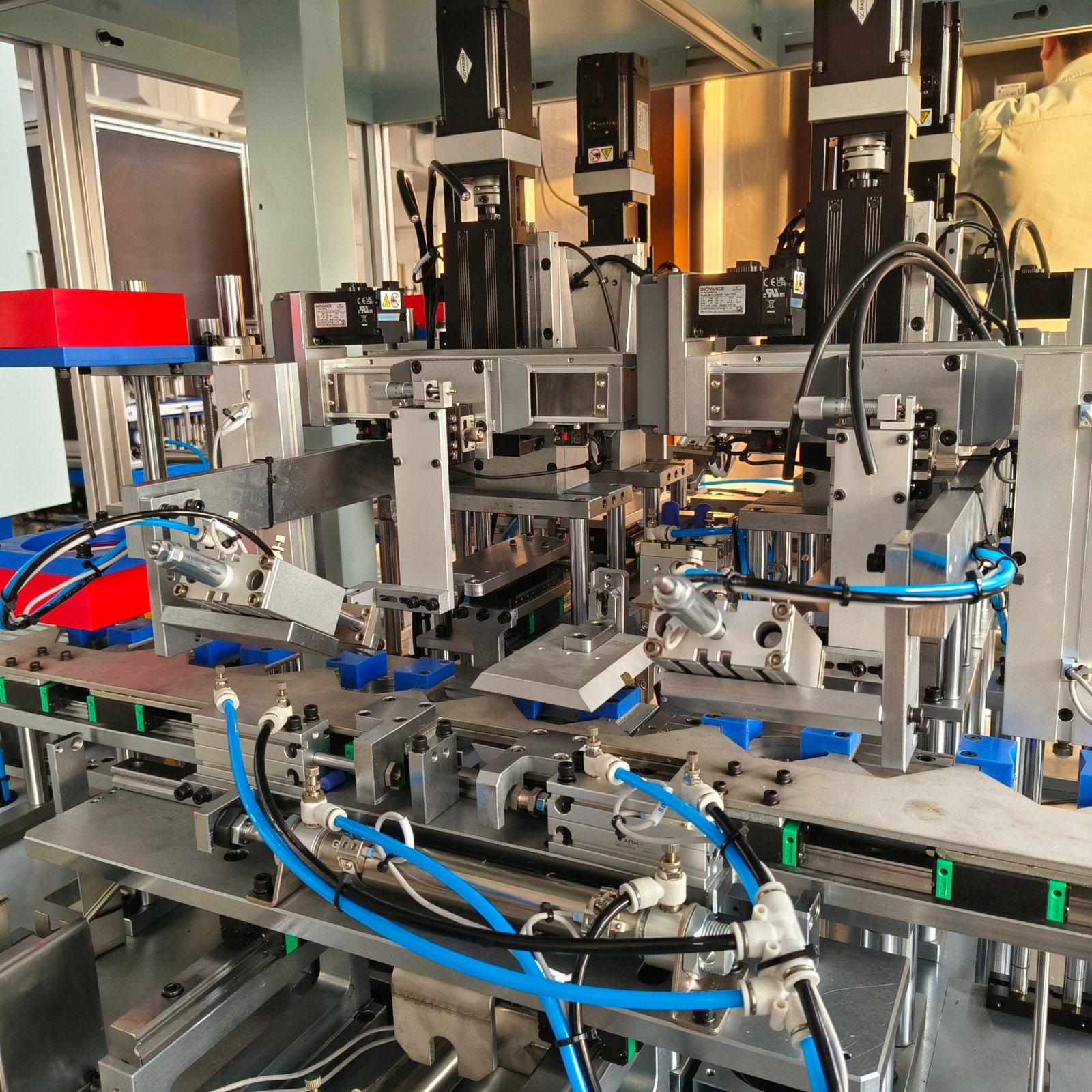

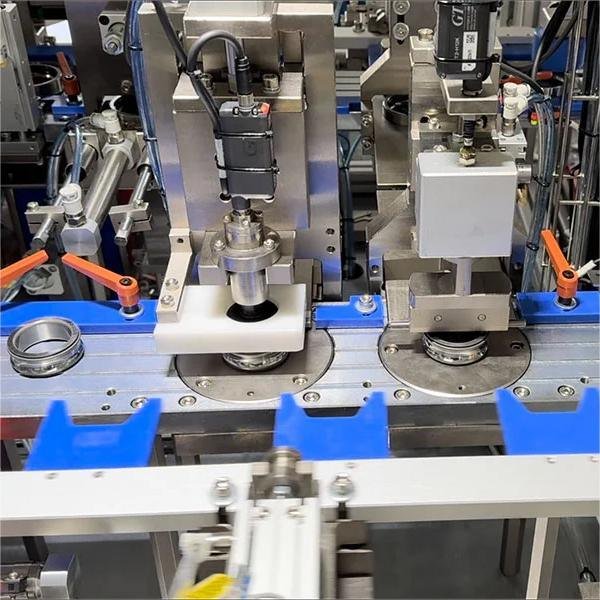

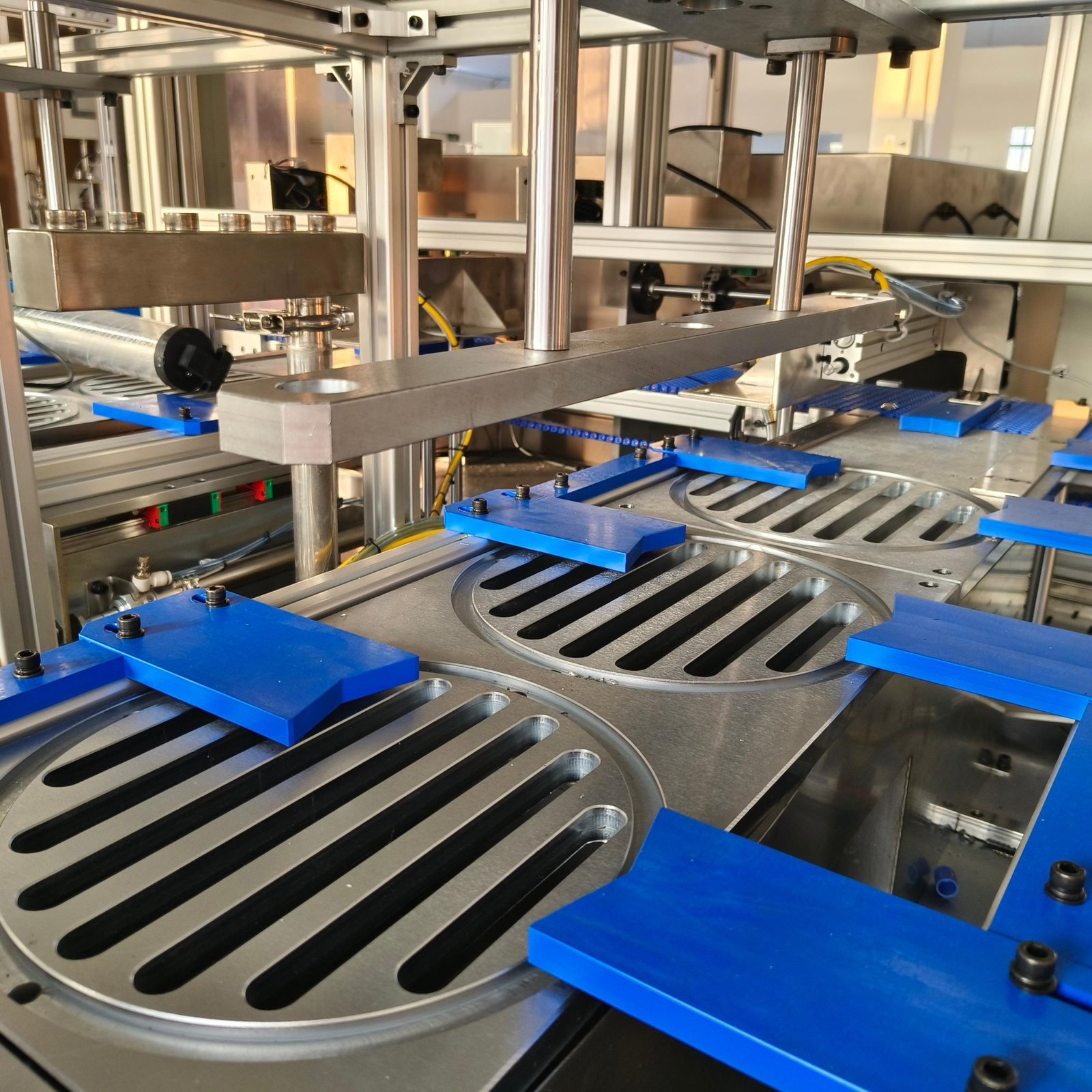

Factory Site Pictures
